ADVANCED TECHNOLOGIES

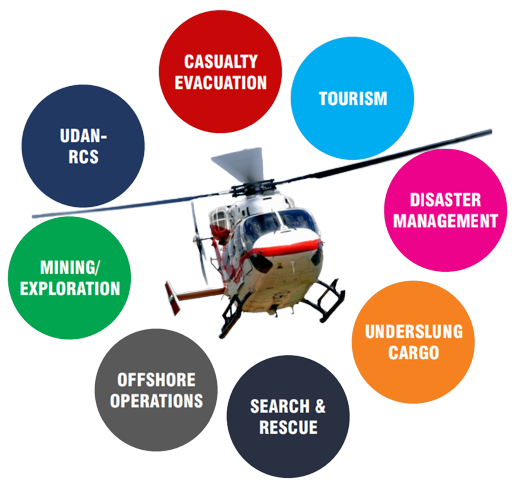

    MISSIONS & ROLES

    OPERATIONAL CAPABILITY

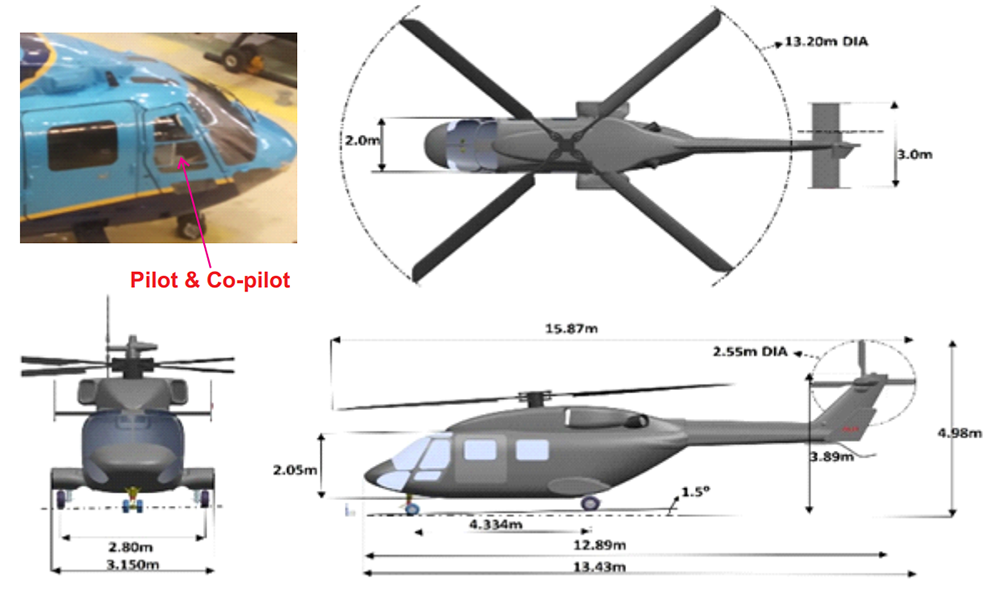

    GEOMETRICAL DATA

    SALIENT FEATURES
    Crew Pilot & Co -pilot Seating 9 / 14 PAX
      Advanced Glass Cockpit, Vibration control, Navigation & Communication Sys.
      Crashworthy Structure & Crew Seats
      Crashworthy, Self -sealing fuel tanks
      Armour Plates for Law Enforcement role
    Equipped empty weight 3167 kg in case of skid variant Length 15.89 m
    Max Take Off Weight 5500 kg Height 4.98 m as in sketch to tip of tail rotor
    Engine (Twin) Shakti 1H1 C Main Rotor 4 Blades, Hingeless

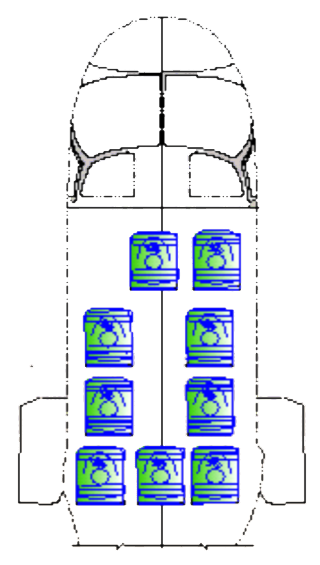

      Spacious Cabin :

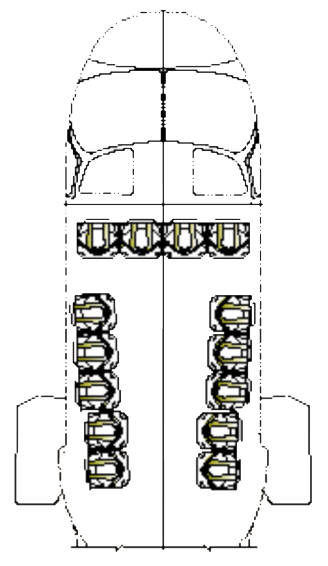

      VIP / Utility : 9 / 14 PAX (or)
      2 Stretchers + 1 Doctor + 1 Attendant
    Engine Power 1032 kW as in Ardiden 1H1 Tail Rotor 4 Blades, Bearingless

    PERFORMANCE
    Never exceed speed at Sea Level 285 kmph
    Maximum speed at Sea Level 240 kmph
    Ferry Range (20 min reserve) 630 km
    Service ceiling 6000 m
    Cabin Volume 7.33 m3
    Cargo Volume 2.16 m3
    Endurance 4 Hrs
    Payload (Internal/Under- Slung): 1000/1500 kg
