The Air data computer (ADC 3600A CVL1) measures Pressure Altitude, Calibrated Airspeed, True Airspeed, Mach number, Vertical Speed and Temperature in the atmosphere with high accuracy and stability based on Pneumatic inputs (Pitot and Static ports) and electrical input (OAT probe). OAT probe is an Aerodynamic structure intended to measure total air temperature. ADC 3600A CVL1 can be installed on civil Aircraft and Helicopters.

TECHNICAL SPECIFICATIONS

PARAMETER	SPECIFICATION
Indicated static pressure	35 mbar to 1100mbar
Indicated differential pressure	0 mbar to 510 mbar
Total Air Temperature	-55⁰C to 75⁰C
Pressure Altitude	0 to 35000 ft
Vertical Speed	±20000 ft/min
Calibrated Airspeed	30 to 600 Knots
Mach Number	0.1 to 0.9 M
Maximum Allowable Airspeed	30 to 600 Knots
True Air Speed	50 to 650knots
Static Air Temperature	-90⁰C to 75⁰C

OAT Probe

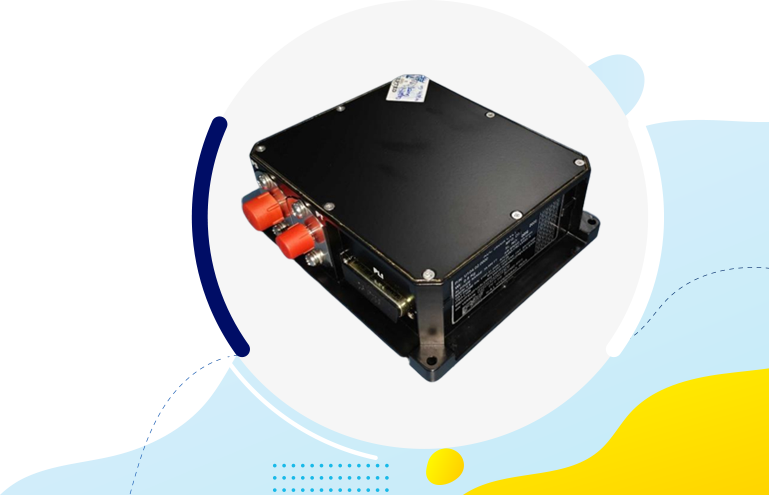

ADC 3600A CVL1

Salient Features:

Signal Inputs

Power supply: 28V DC
Hold-Up Module : Power Interruption up to 50 msec
SSEC inputs
Self Test input

Signal Outputs

2 Transmit channels of ARINC 429 Serial Data Bus
Over Speed Warning
2 Low speed Warnings
1 Alarm signal

Interfaces

ARINC-429 LOW or HIGH speed
USB Maintenance Interface

Physical

Dimensions (L X W X H) : 150 X 130 X 50 ( mm)
Weight: 1Kg (max)

Standards Compliance

DO-160G Environmental, EMI/EMC and Power Supply tests.
DO-178C, Level-A for Software
